PDS 70 by ALMA

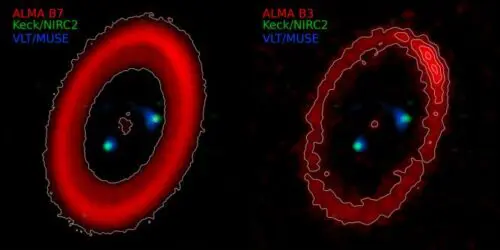

Composite images of PDS 70 in pseudo color. The left panel shows previous ALMA observations at 0.87 mm, and the right panel shows new ALMA observations at 3 mm. The composite image combines millimeter/submillimeter continuum images with ALMA (red), an infrared continuum image from W. M. Keck Observatory (green), and an optical image of a hydrogen emission line taken with the VLT (blue). The images show that the dust emissions observed with ALMA form a ring-like structure outside the planets detected by Keck and the VLT. At a wavelength of 3 mm, the dust emission can be seen prominently concentrated in the northwest direction (upper right of the image). Credit: ALMA (ESO/NAOJ/NRAO), W. M. Keck Observatory, VLT (ESO), K. Doi (MPIA)
