Feeding a Baby Star with a Dusty Hamburger

20 April, 2017 / Read time: 4 minutes

An international research team, led by Chin-Fei Lee in Academia Sinica Institute of Astronomy and Astrophysics (ASIAA, Taiwan), has made a new high-fidelity image with the Atacama Large Millimeter/submillimeter Array (ALMA), catching a protostar (baby star) being fed with a dusty “hamburger”, which is a dusty accretion disk. This new image not only confirms the formation of an accretion disk around a very young protostar, but also reveals the vertical structure of the disk for the first time in the earliest phase of star formation. It not only poses a big challenge on some current theories of disk formation, but also potentially brings us key insights on the processes of grain growth and settling that are important to planet formation.

“It is so amazing to see such a detailed structure of a very young accretion disk. For many years, astronomers have been searching for accretion disks in the earliest phase of star formation, to determine their structure, how they are formed, and how the accretion process takes place. Now using the ALMA with its full power of resolution, we not only detect an accretion disk but also resolve it, especially its vertical structure, in detail”, says Chin-Fei Lee at ASIAA.

“In the earliest phase of star formation, there are theoretical difficulties in producing such a disk, because magnetic fields can slow down the rotation of collapsing material, preventing such a disk from forming around a very young protostar. This new finding implies that the retarding effect of magnetic fields in disk formation may not be as efficient as we thought before,” says Zhi-Yun Li at University of Virginia.

HH 212 is a nearby protostellar system in Orion at a distance of about 1300 ly. The central protostar is very young with an age of only ~40,000 years (which is about 10 millionth of the age of our Sun) and a mass of around a fifth part the one of the Sun. It drives a powerful bipolar jet and thus must accrete material efficiently. Previous search at a resolution of 200 AU only found a flattened envelope spiraling toward the center and a hint of a small dusty disk near the protostar. Now with ALMA at a resolution of 8 AU, which is 25 times higher, we not only detect but also spatially resolve the dusty disk at submillimeter wavelength.

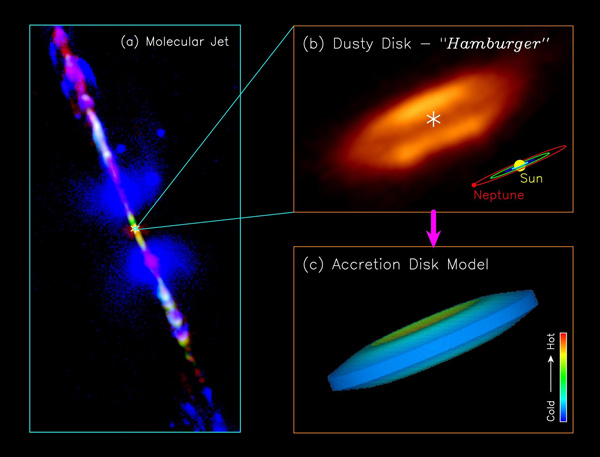

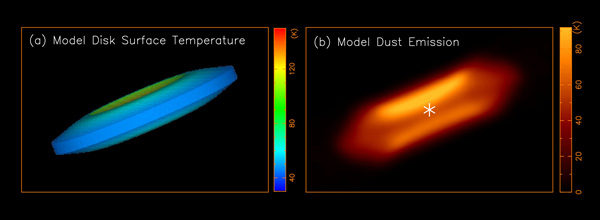

The disk is nearly edge-on and has a radius of about 60 AU. Interestingly, it shows a prominent equatorial dark lane sandwiched between two brighter features, due to relatively low temperature and high optical depth near the disk midplane. For the first time, this dark lane is seen at submillimeter wavelength, producing a “hamburger”-shaped appearance that is reminiscent of the scattered-light image of an edge-on disk in optical and near infrared. The structure of the dark lane clearly implies that the disk is flared, as expected in an accretion disk model.

Our observations open an exciting possibility of directly detecting and characterizing small disks around the youngest protostars through high-resolution imaging with ALMA, which provides strong constraints on theories of disk formation. Our observations of the vertical structure can also yield key insights on the processes of grain growth and settling that are important to planet formation in the earliest phase.

Additional information

This research was presented in a paper “First detection of equatorial dark dust lane in a protostellar disk at submillimeter wavelength,” by Lee et al. to appear in the journal Science Advances.

The team is composed of Chin-Fei Lee (ASIAA, Taiwan; National Taiwan University, Taiwan), Zhi-Yun Li (University of Virginia, USA), Paul T.P. Ho (ASIAA, Taiwan; East Asia Observatory), Naomi Hirano (ASIAA, Taiwan), Qizhou Zhang (Harvard-Smithsonian Center for Astrophysics, USA), and Hsien Shang (ASIAA, Taiwan).

The Atacama Large Millimeter/submillimeter Array (ALMA), an international astronomy facility, is a partnership of the European Organisation for Astronomical Research in the Southern Hemisphere (ESO), the U.S. National Science Foundation (NSF) and the National Institutes of Natural Sciences (NINS) of Japan in cooperation with the Republic of Chile. ALMA is funded by ESO on behalf of its Member States, by NSF in cooperation with the National Research Council of Canada (NRC) and the Ministry of Science and Technology (MOST) in Taiwan and by NINS in cooperation with the Academia Sinica (AS) in Taiwan and the Korea Astronomy and Space Science Institute (KASI).

ALMA construction and operations are led by ESO on behalf of its Member States; by the National Radio Astronomy Observatory (NRAO), managed by Associated Universities, Inc. (AUI), on behalf of North America; and by the National Astronomical Observatory of Japan (NAOJ) on behalf of East Asia. The Joint ALMA Observatory (JAO) provides the unified leadership and management of the construction, commissioning and operation of ALMA.
